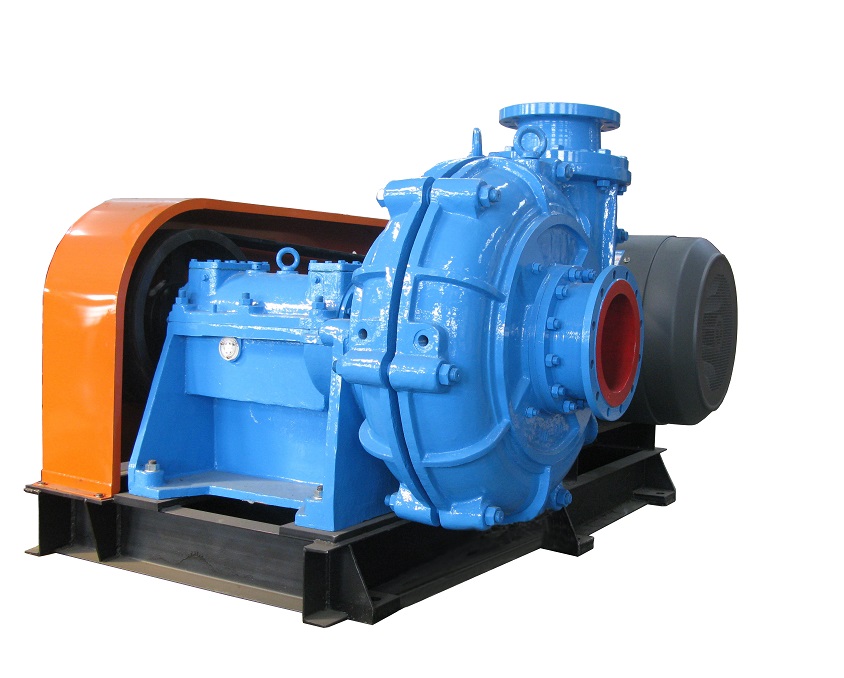

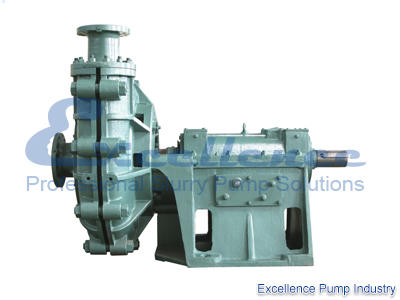

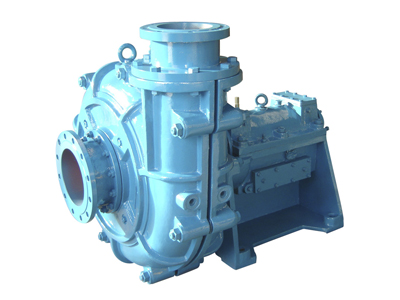

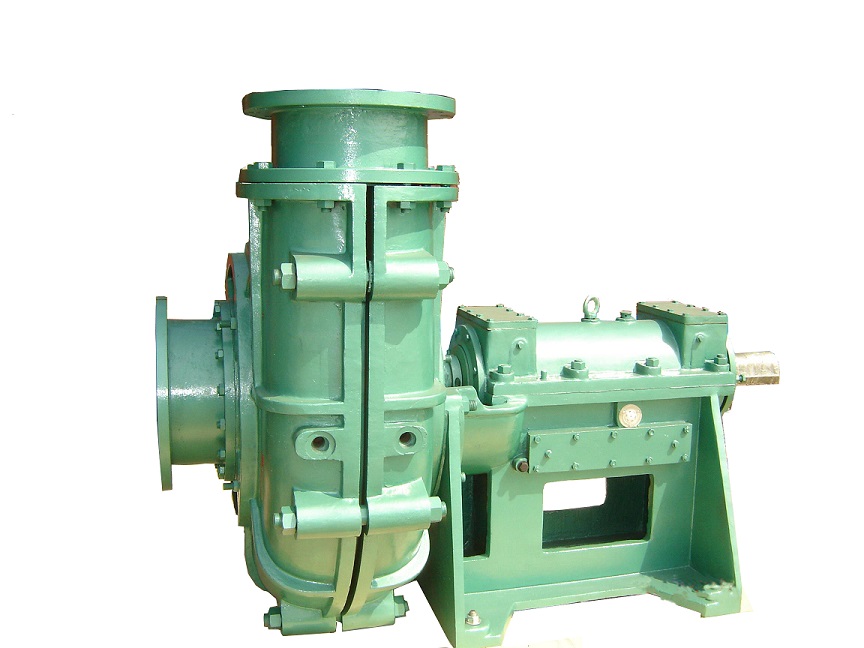

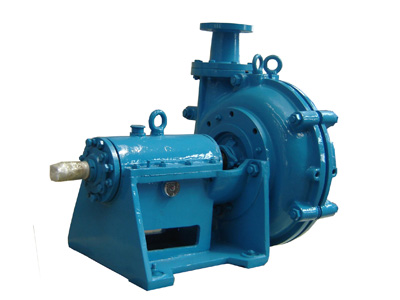

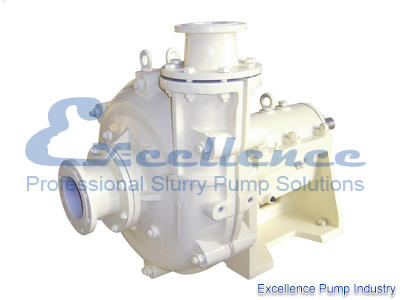

EZ Slurry Pump

1. CAM design is based on the theories of modern hydromechanics and mechanics.
2. The wet parts adopt interchangeable anti-abrasive and anti-corrosive alloy material.
3. The metric bearing is lubricated by oil; scientific lubricating and cooling system ensure that the bearing operates under low temperature.
4. Complete range of pump models can meet various requirements and site working conditions.

Parameters and Selection
  • Model
    300EZ
  • Capacity
    395-2333 m³/h
  • Head(TDH)
    9.7-79.9 m
  • Allowable Max. Power
    630 kW
  • Speed
    300-980 r/min
  • NPSH
    3-3.9 m
  • Model
    250EZ
  • Capacity
    272-1573 m³/h
  • Head(TDH)
    13.1-128.7 m
  • Allowable Max. Power
    710 kW
  • Speed
    400-980 r/min
  • NPSH
    2.7-3.5 m
  • Model
    200EZ
  • Capacity
    199-950 m³/h
  • Head(TDH)
    13-133.7 m
  • Allowable Max. Power
    560 kW
  • Speed
    490-980 r/min
  • NPSH
    2.5-3 m
  • Model
    150EZ
  • Capacity
    93-600 m³/h
  • Head(TDH)
    8.7-91.2 m
  • Allowable Max. Power
    200 kW
  • Speed
    490-1480 r/min
  • NPSH
    1.8-2.5 m
  • Model
    100EZ
  • Capacity
    56-365 m³/h
  • Head(TDH)
    8.2-100.2 m
  • Allowable Max. Power
    160 kW
  • Speed
    700-1480 r/min
  • NPSH
    1.8-2.5 m
  • Model
    80EZ
  • Capacity
    43-242 m³/h
  • Head(TDH)
    8-109.8 m
  • Allowable Max. Power
    160 kW
  • Speed
    700-1480 r/min
  • NPSH
    2.1-2.5 m
  • Model
    65EZ
  • Capacity
    20-79 m³/h
  • Head(TDH)
    6-34.8 m
  • Allowable Max. Power
    15 kW
  • Speed
    700-1480 r/min
  • NPSH
    1.8-2 m
  • Model
    50EZ
  • Capacity
    12-111 m³/h
  • Head(TDH)
    7.7-110.7 m
  • Allowable Max. Power
    90 kW
  • Speed
    700-1480 r/min
  • NPSH
    1.4-3 m
  • Model
    40EZ
  • Capacity
    4-23 m³/h
  • Head(TDH)
    9-44.6 m
  • Allowable Max. Power
    7.5 kW
  • Speed
    700-1480 r/min
  • NPSH
    2.5 m

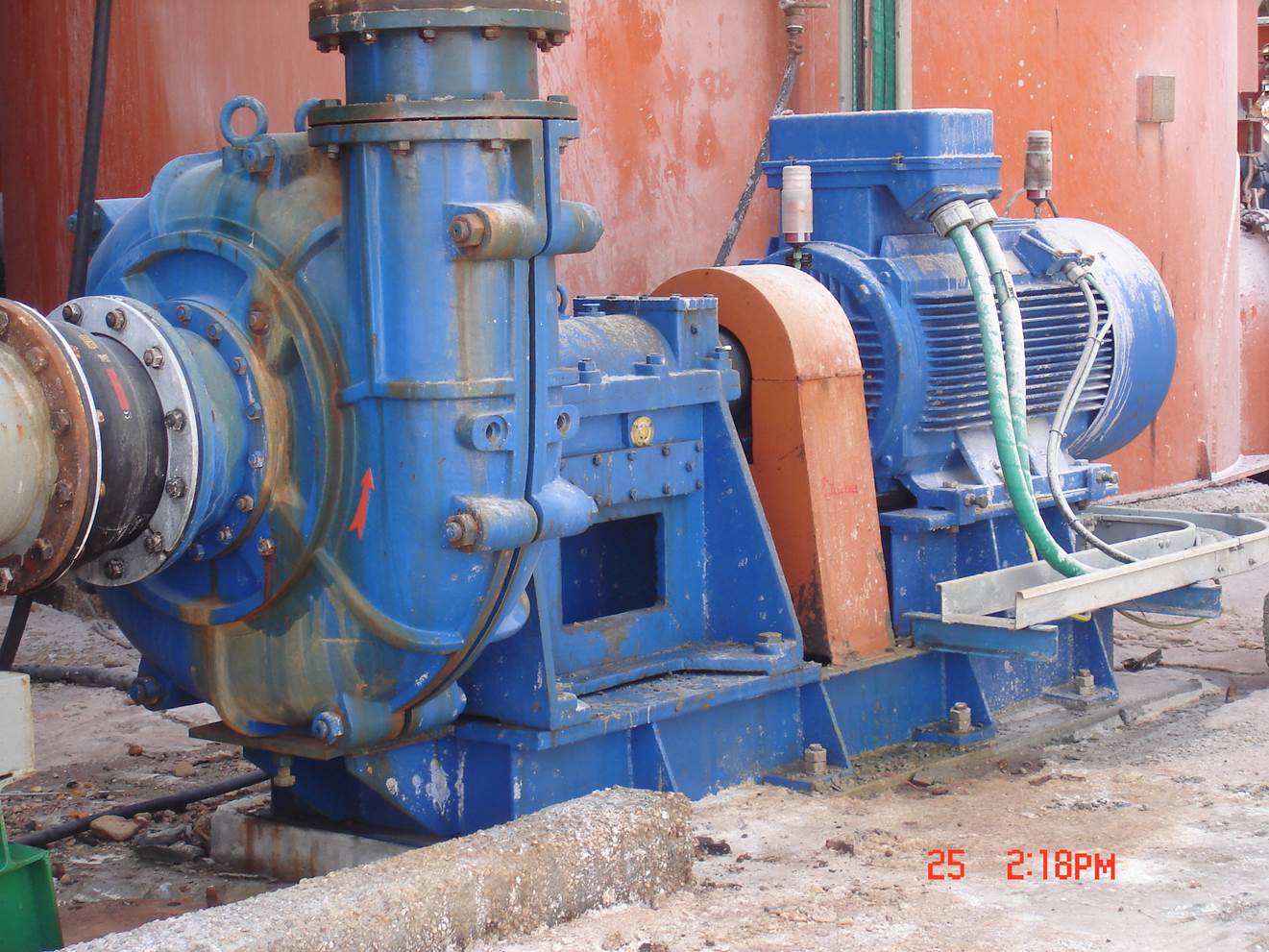

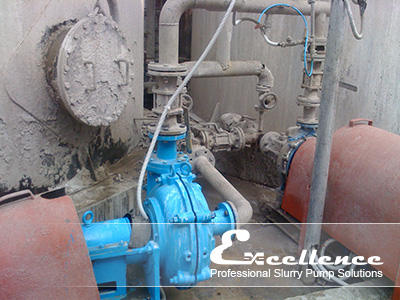

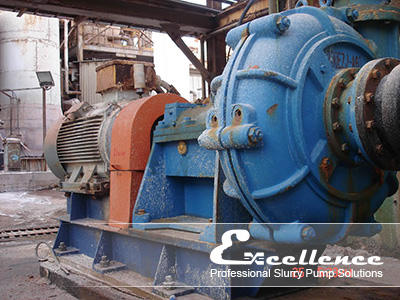

Application and Reference
Series EZ slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.
Typical Application:
  • Iron Ore Dressing Plant
  • Copper Concentration Plant
  • Gold Mine Concentration Plant
  • Molybdenum Concentration Plant
  • Potash Fertilizer Plant
  • Other Mineral Processing Plants
  • Alumina Industry
  • Coal Washery
  • Power Plant
  • Sand Excavation
  • Building Material Industry
  • Chemical Industry
  • Other industries
EZ Slurry Pump Structure
EZ slurry pump has various models for different applications. It has double casing horizontal slurry pump and single casing horizontal slurry pump as well as vertical pump ranges.

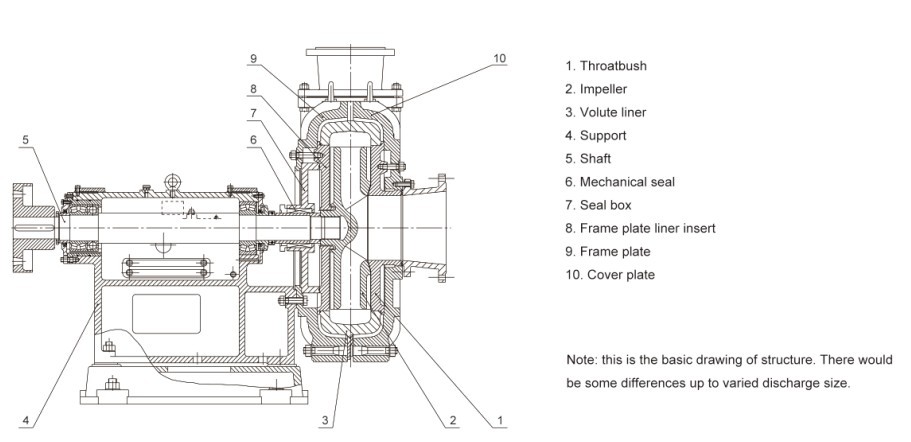

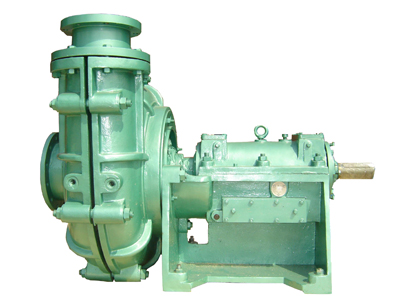

The standard EZ pump structure:

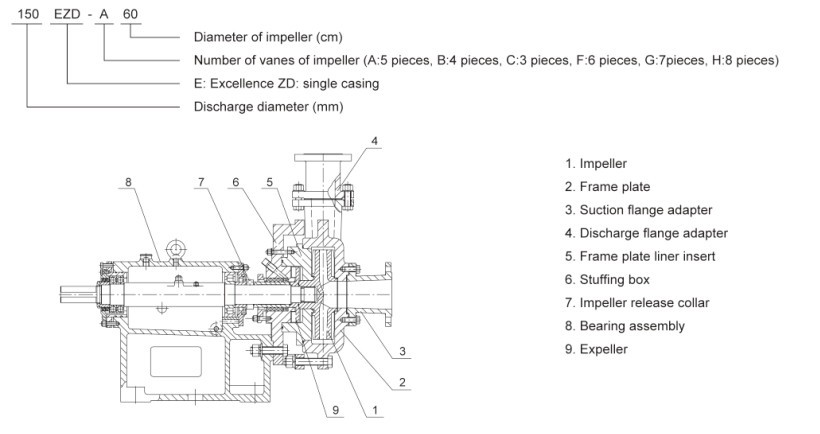

Single casing horzontal slurry pump structure:

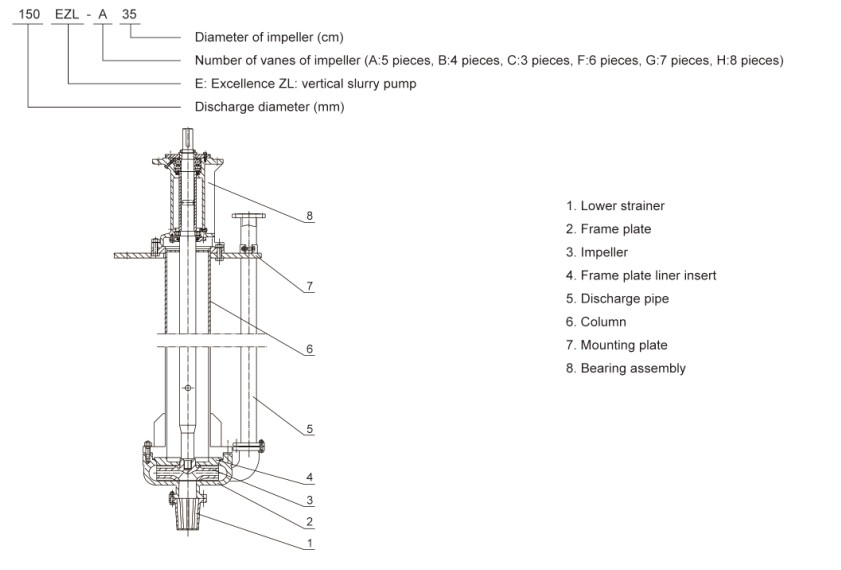

Vertical slurry pump structure:



Standard Configuration
If there isn't any specified requirment, Excellence pump provides the following standard  configuration:

  • Shaft seal type:
    Centrifugal seal with packing seal
  • Discharge direction:
    Upright
  • Connection type:
    Customized
  • Pump color:
    Green
  • Package:
    Fumigation-free wooden packaging
If you want to know more pump standard ,please click here to ask for sales engineer.
